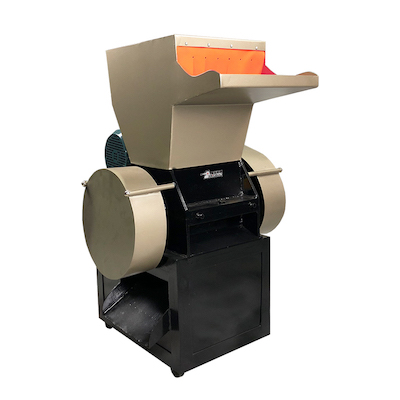

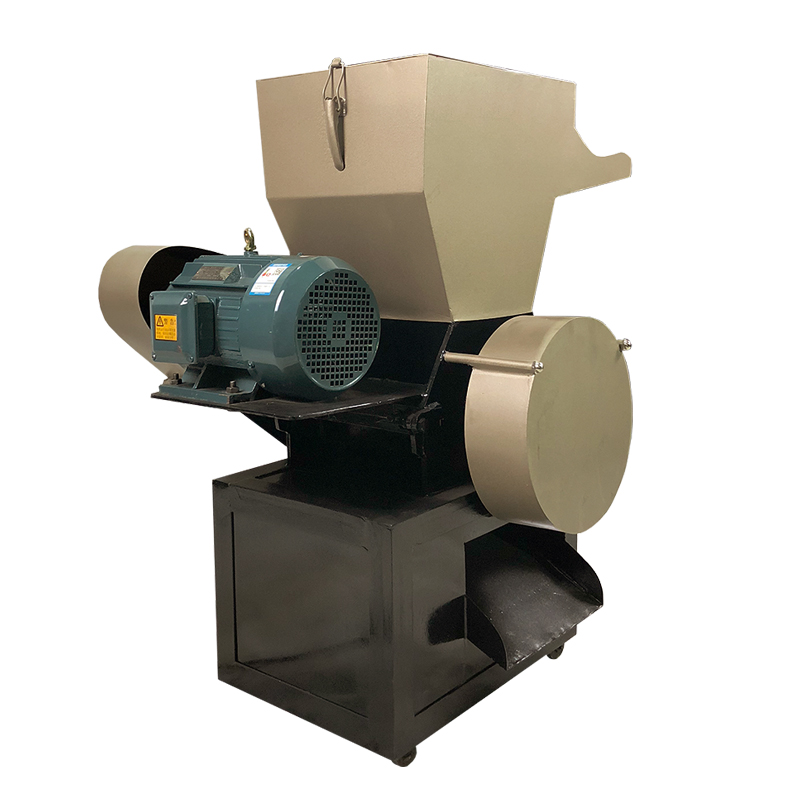

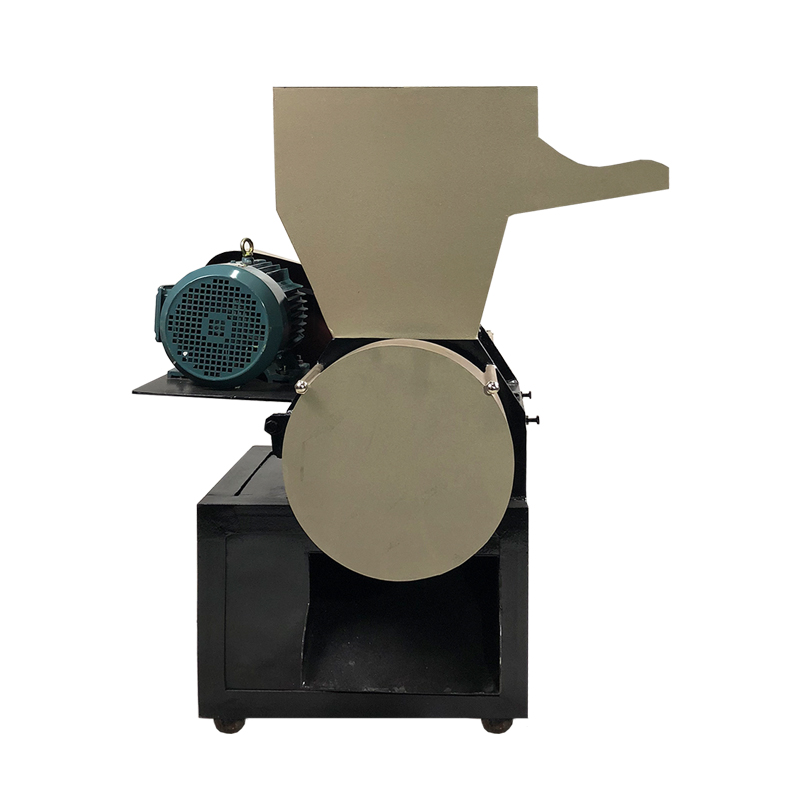

pt普通塑料粉碎机

星标PT系列集中粉碎机破碎机是一种破碎功能强大的多用途机器,主要用作破碎各种软硬塑胶,将块状、球状、条状及水口塑胶粉碎成颗粒,对塑胶次品、废品、水口料的迅速回起到重要作用,提高塑胶的利用率。其既可做在线机边粉碎机,置于主机边;也可做某生产区域线下集中处理粉碎机。



PT series crusher is a powerful crushing function of multi-purpose machine, mainly used for crushing all kinds of soft and hard plastics, block, ball, strip and water mouth plastic crushing into particles, to plastic defective, waste, water mouth material quickly back to play an important role, improve the utilization rate of plastic. It can be used as on-line machine edge crusher, placed on the side of the main machine; Can also do a production area line centralized processing crusher.



粉碎机特点:

1.切削刀具采用高铬工具钢,间隙可调,经久耐用。

2.超大惯性轮使扭矩加大,产能提高。

3.电机过载保护,过力跳脱。

4.安全装置联锁设计,保护机器和人员安全。

5.斜切削双剪切式切削有效减少粉尘及节能。

6.重荷型轴承及防尘装置,并有防音隔板,能有效地防止震动和噪音。

7.小型机加装脚轮,移动方便。大型机加装可调避震脚,工作平稳降低噪音。

8.拆装式设计,易于维护保养。



Features of pulverizer:



1. The cutting tool adopts high chromium tool steel, the gap is adjustable and durable.

2. Super large inertia wheel increases torque and productivity.

3. Motor overload protection, overforce jump off.

4 safety device interlock design, to protect the safety of the machine and personnel.

5. Inclined cutting double shear cutting effectively reduce dust and energy saving.

6. Heavy load bearing and dustproof device, and soundproof partition, can effectively prevent vibration and noise.

7. The minicomputer is equipped with casters, which is convenient to move. The mainframe is equipped with adjustable shock absorber feet, which can work smoothly and reduce noise.

8. Disassembly design, easy maintenance.

粉碎机参数:

PT系列塑料粉碎机

型号

PT-250

PT-300

PT-400

PT-500

电机功率(kw

4

4

7.5

11

主轴转速(r/min

570

570

570

550

旋转直径(mm

200

200

300

300

动刀数(把)

3

3

3

6

定刀数(把)

2

2

2

2

刀具材质


进料口尺寸(mm

310*170

370*170

500*205

610*225

进料口高度(mm

900

930

1120

1135

粉碎能力

150

200

300

400

筛网直径(Φ)

8

8

10

10

重量(kg

160

185

368

470

外形尺寸A*B*Cmm

710*620*1050

710*690*1070

1120*820*1300

1280*930*1330
