网站首页 > 产品 > 塑机辅机
详细内容

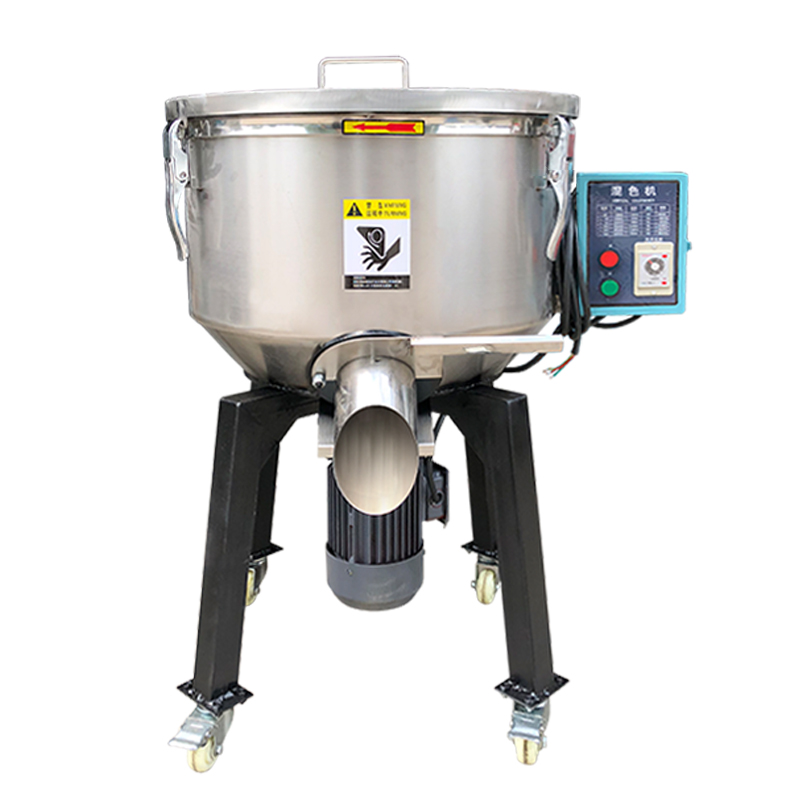

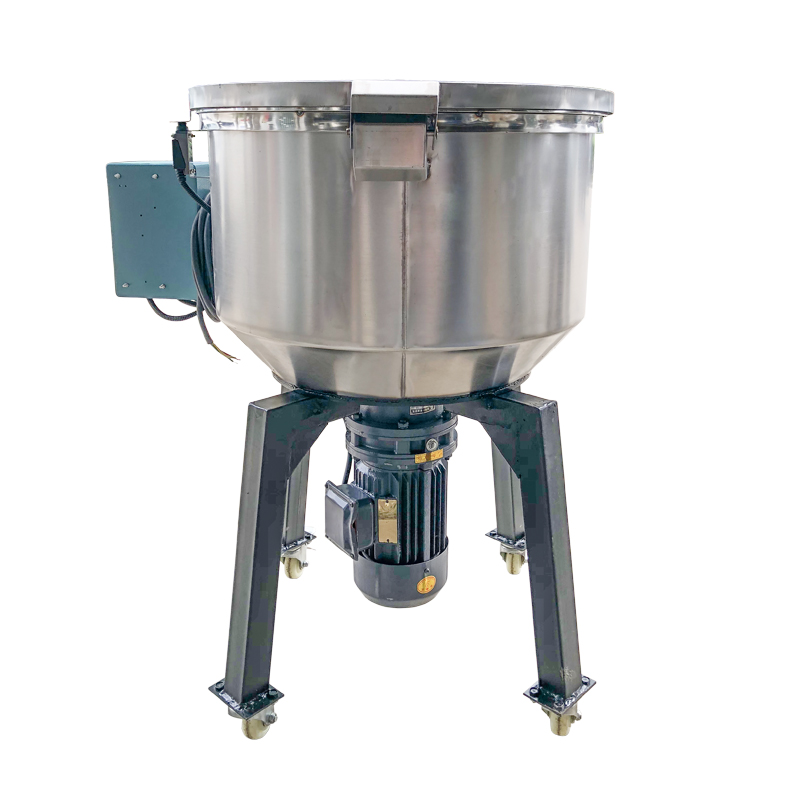

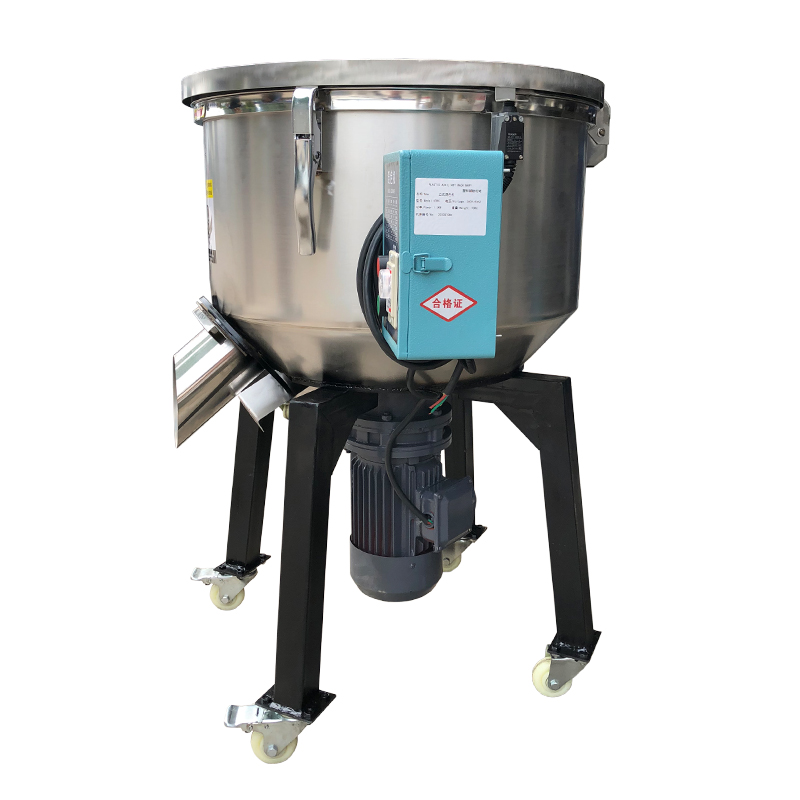

混色机器


混色机是利用拨料叶片旋涡式高速运转,使塑料粒(或树脂粉)高速翻滚碰撞磨擦发热,使物料在混色的同时也使水份从排气管快速蒸发而达到干燥的目的的机器。



The color mixing machine is a machine which makes the plastic particles (or tree powder) roll and collide and rub at high speed, and makes the material evaporate quickly from the exhaust pipe while mixing the color to achieve the purpose of drying.



混色机特点:

1.  桶体采用进口不锈钢制造,焊接牢固,表面光亮,易清洗。

2.  全方位360度旋转混合,入料,出料任意定位,操作方便。

3.  首创网孔保护罩,结构合理,美观实用,确保操作安全。

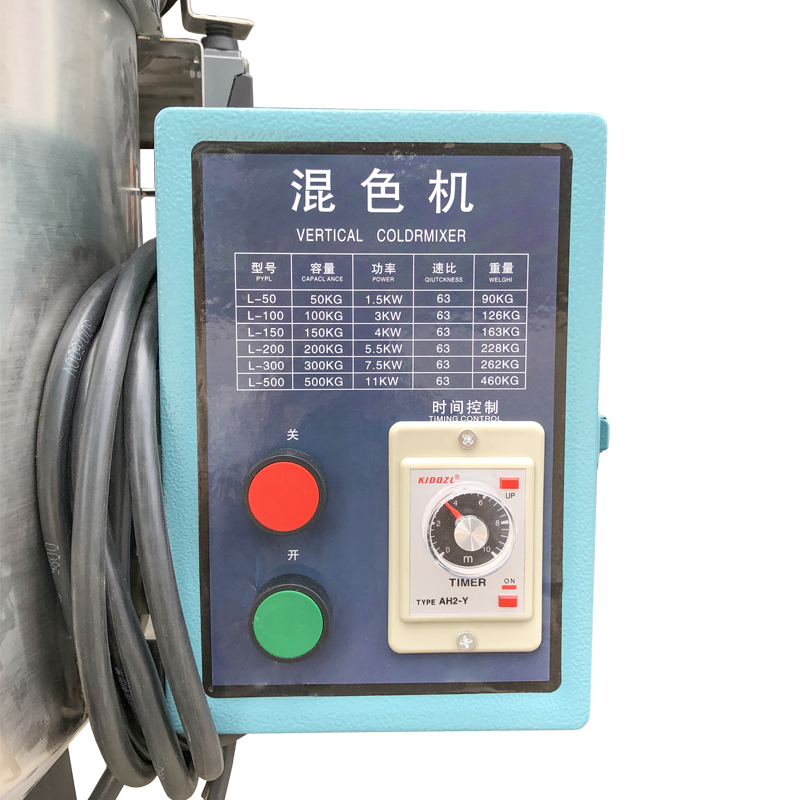

4.  计时器可在0-30分钟之间选择混料时间。

Features of color mixer:

1. The barrel body is made of imported stainless steel, with firm welding, bright surface and easy cleaning.

2. Omnidirectional 360 degree rotation mixing, feeding, discharging arbitrary positioning, easy to operate.

3. The first mesh protective cover, reasonable structure, beautiful and practical, to ensure safe operation.

4. The timer can choose the mixing time between 0 and 30 minutes.

混色机操作规程:

一、始业点检:

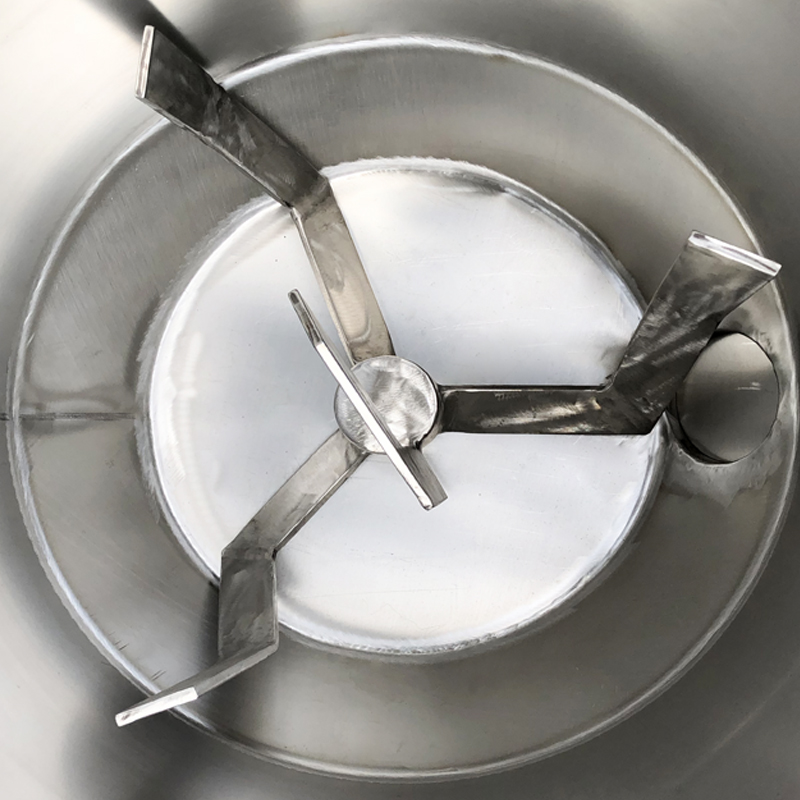

1. 检查搅拌叶片是否有松动,润滑是否良好。

2. 开机空转,检查有无异常响声和其它异常情况,确认一切正常后方可开机工作。

3. 检查搅拌筒里有无异物,是否干净。

4. 检查安全开关是否灵活,有效。

二、安全操作:

1.    将各种物料按工艺要求的配方度量和数量加入到混色机内。

2.    将盖子盖好后才能起动电机,并按照规定的时间搅拌。

3.    运转过程中严禁将手伸进混色机里抓料,如需查看,应先停机。

4.    如需清理机器,应先切断电源,方可进行操作。

三、停机操作:

1.    停机后应关好机台电源,关下漏电开关,切断电源方可离岗。

2.   停机后,应把设备彻底擦干净,特别是相互转动的部位,严禁有灰尘堆积。

Operation rules of color mixing machine:

I. Initial inspection:

1. Check whether the stirring blade is loose and whether the lubrication is good.

2. Start idling, check whether there is abnormal sound and other abnormal conditions, and confirm everything is normal before starting work.

3. Check whether there are foreign bodies in the mixing cylinder and whether it is clean.

4. Check whether the safety switch is flexible and effective.

Two, safe operation:

1. Add all kinds of materials to the color mixer according to the formula measurement and quantity required by the process.

2. Put the cover on before starting the motor, and stir according to the specified time.

3. In the process of operation, it is forbidden to put your hand into the color mixer to grasp the material. If you need to check, stop the machine first.

4. If the machine needs to be cleaned, the power should be cut off before operation.

Three, stop operation:

1. After stopping the machine, turn off the power supply of the machine, turn off the leakage switch, and cut off the power supply before leaving the post.

2. After shutdown, the equipment should be thoroughly wiped clean, especially the parts that rotate each other, no dust accumulation is prohibited.

混色机参数

型号

50KG

100KG

150KG

200KG

300KG

电机功率(kw

1.5

3

4

5.5

7.5

桶内高度(mm

420

600

670

760

820

下料口高度(mm

450

560

620

660

660

外形尺寸(mm

830*830*1000

1000*1000*1220

1050*1050*1340

1210*1210*1450

1300*1300*1530

桶壁厚(mm

1.2

1.2

1.2

1.2

1.2

重量(kg

90

126

163

228

262

转速(r/min

62

62

62

62

62

材质

201不锈钢板

201不锈钢板

201不锈钢板

201不锈钢板

201不锈钢板
